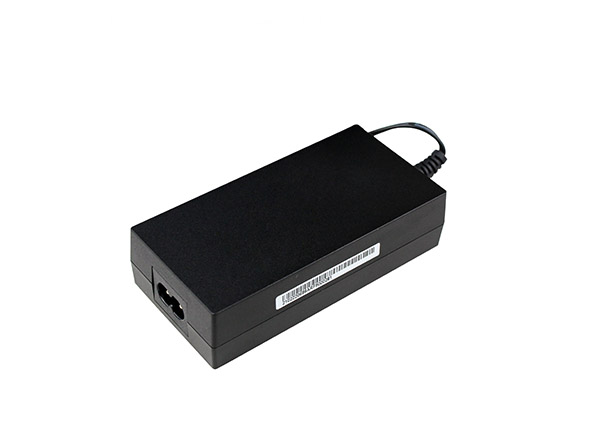

UES65-SPZ-OP
- 產品型號：UES65-SPZ-OP
- 功率：65W
- 輸出電壓：9V-54V
- 輸出電流：0.01-5.42A
- 資料下載：
點擊查看詳細資料
| 產品經理微信： |
|
產品特性 | ||
醫療和ITE安全認證 | ||
2 MOPP 隔離保護 | ||
漏電流 ≤ 100μA | ||
DOE 六級能效 | ||
待機功耗≤0.15W | ||
9V至54V輸出, 最高65W | ||
工作海撥高度5000米 | ||
電氣規格 | ||
輸入電壓:90~264VAC | ||
輸入電流:2A | ||
輸出電壓范圍:±5% | ||
環境參數 | ||
工作溫度: 0~40℃ | ||
儲存溫度: -20~60℃ | ||
工作濕度:10~90% | ||
儲存濕度:5~90% | ||
安規認證 | ||
安全機構/標志 | 醫療 | 通信 |
CB | IEC60601-1 IEC60601-1-11 | IEC60950-1 IEC62368-1 |
UL | ANSI/AAMI ES60601-1 | - |
CAN/CSA C22.2 NO.60601-1 | ||
機械規格 | ||
125(長)*62(寬)*34(高)mm | ||
應用場所 | ||
適用于醫療、信息通訊設備類電源適配器 | ||
型號 | 電壓 | 電流 | 額定功率 | 紋波 | 電壓公差 | 線性與負數調整率 | 平均效率 | 啟動延遲時間 |
9.0-12.0 | 0.01-5.42 | 65.04W | 200 | ±5% | 89.00% | ≤3s | ||
12.1-13.0 | 0.01-5.00 | 65.00W | 200 | ±5% | 89.00% | ≤3s | ||
13.1-14.0 | 0.01-4.64 | 64.96W | 200 | ±5% | 89.00% | ≤3s | ||
14.1-15.0 | 0.01-4.30 | 64.50W | 200 | ±5% | 89.00% | ≤3s | ||
15.1-16.0 | 0.01-4.06 | 64.96W | 200 | ±5% | 89.00% | ≤3s | ||
UES65-XXXYYYSPAZ-OP | 16.1-17.0 | 0.01-3.82 | 64.94W | 200 | ±5% | 線性調整率: ±1% | 89.00% | ≤3s |
17.1-18.0 | 0.01-3.60 | 64.80W | 200 | ±5% | 負載調整率: ±5 % | 89.00% | ≤3s | |
18.1-19.0 | 0.01-3.40 | 64.60W | 200 | ±5% | 89.00% | ≤3s | ||
19.1-20.0 | 0.01-3.24 | 64.80W | 200 | ±5% | 89.00% | ≤3s | ||
20.1-21.0 | 0.01-3.09 | 64.89W | 200 | ±5% | 89.00% | ≤3s | ||
21.1-22.0 | 0.01-2.95 | 64.90W | 200 | ±5% | 89.00% | ≤3s | ||
22.1-23.0 | 0.01-2.82 | 64.86W | 200 | ±5% | 89.00% | ≤3s | ||
23.1-24.0 | 0.01-2.70 | 64.80W | 240 | ±5% | 89.00% | ≤3s | ||
48.0 | 0.01-1.35 | 64.80W | 300 | ±5% | 89.00% | ≤3s | ||
48.0-54.0 | 0.01-1.20 | 64.80W | 300 | ±5% | 89.00% | ≤3s |
