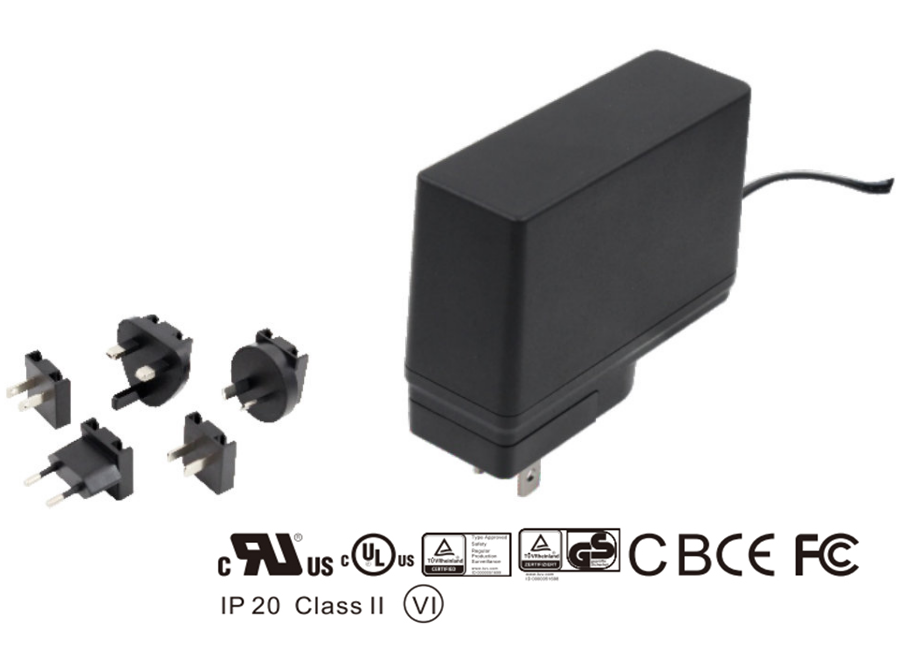

UES65-SPA5-OP
- 產品型號：UES65-SPA5-OP
- 功率：65W
- 輸出電壓：5.00-48.00V
- 輸出電流：0.01-10.00A
- 資料下載：
點擊查看詳細資料
| 產品經理微信： |
|
產品特征
| 醫療和I.T.E.安全認證 |
| 2 MOPP 隔離保護 |
| 漏電流 ≤ 100μA |
| DOE 六級能效 |
| 待機功耗≤0.15W |
| 工作海撥高度5000米 |
| 電氣規格 |
| 輸入電壓:90~264VAC |
| 輸入電流:1.5A at 90vac |
| 頻率范圍：47-63Hz |
| 浪涌電流：100A 最大，在240VAC 輸入和冷啟動條件下 |
| 環境參數 |
| 工作溫度: -10~50℃ |
| 儲存溫度: -20~70℃ |
| 工作濕度:10~90%RH,無冷凝 |
| 儲存濕度:5~90%RH |
| 安規認證 | ||
| 安全機構/標志 | 醫療 | 通信(符合) |
| CB | IEC60601-1 | IEC62368-1 |
| NRTL | ANSI/AAMI ES60601-1 CAN/CSA C22.2 NO.60601-1 | - |
| TUV-Mark | EN60601-1 | EN62368-1 |
型號 | 電壓 | 電流 | 額定功率 | 紋波 | 電壓公差 | 線性與負數調整率 | 平均效率 | 啟動延遲時間 |
UES65-XXXYYYSPA5 -OP | 5.0 | 0.01-10.00 | 50W | 120 | ±5% | 線性調整率: ±1% 負載調整率: ±5% | 89.0% | ≤3s |
5.1-6.0 | 0.01-8.50 | 51W | 120 | ±5% | 89.0% | ≤3s | ||
6.1-7.5 | 0.01-8.00 | 60W | 120 | ±5% | 89.0% | ≤3s | ||
7.6-8.0 | 0.01-7.50 | 60W | 120 | ±5% | 89.0% | ≤3s | ||
8.1-9.0 | 0.01-6.66 | 60W | 120 | ±5% | 89.0% | ≤3s | ||
9.1-10.0 | 0.01-6.00 | 60W | 120 | ±5% | 89.0% | ≤3s | ||
10.1-11.0 | 0.01-5.50 | 60W | 120 | ±5% | 89.0% | ≤3s | ||
11.1-12.0 | 0.01-5.42 | 65W | 120 | ±5% | 89.0% | ≤3s | ||
12.1-13.0 | 0.01-5.00 | 65W | 120 | ±5% | 89.0% | ≤3s | ||
13.1-14.0 | 0.01-4.64 | 65W | 120 | ±5% | 89.0% | ≤3s | ||
14.1-15.0 | 0.01-4.33 | 65W | 120 | ±5% | 89.0% | ≤3s | ||
15.1-16.0 | 0.01-4.06 | 65W | 200 | ±5% | 89.0% | ≤3s | ||
16.1-17.0 | 0.01-3.82 | 65W | 200 | ±5% | 89.0% | ≤3s | ||
17.1-18.0 | 0.01-3.61 | 65W | 200 | ±5% | 89.0% | ≤3s | ||
18.1-19.0 | 0.01-3.42 | 65W | 200 | ±5% | 89.0% | ≤3s | ||
| 19.1-20.0 | 0.01-3.25 | 65W | 200 | ±5% | 89.0% | ≤3s | ||
| 20.1-21.0 | 0.01-3.09 | 65W | 200 | ±5% | 89.0% | ≤3s | ||
| 21.0-22.0 | 0.01-2.95 | 65W | 200 | ±5% | 89.0% | ≤3s | ||
| 22.1-23.0 | 0.01-2.82 | 65W | 200 | ±5% | 89.0% | ≤3s | ||
| 23.1-24.0 | 0.01-2.70 | 65W | 200 | ±5% | 89.0% | ≤3s | ||
| 24.1-27.0 | 0.01-2.40 | 65W | 200 | ±5% | 89.0% | ≤3s | ||
| 27.1-30.0 | 0.01-2.16 | 65W | 300 | ±5% | 89.0% | ≤3s | ||
| 30.1-33.0 | 0.01-1.96 | 65W | 300 | ±5% | 89.0% | ≤3s | ||
| 33.1-36.0 | 0.01-1.80 | 65W | 300 | ±5% | 89.0% | ≤3s | ||
| 36.1-39.0 | 0.01-1.66 | 65W | 300 | ±5% | 89.0% | ≤3s | ||
| 39.1-42.0 | 0.01-1.54 | 65W | 300 | ±5% | 89.0% | ≤3s | ||
| 42.1-45.0 | 0.01-1.44 | 65W | 300 | ±5% | 89.0% | ≤3s | ||
| 45.1-48.0 | 0.01-1.35 | 65W | 300 | ±5% | 89.0% | ≤3s |
